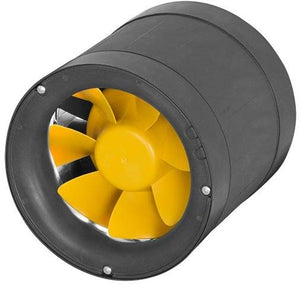

RUCK Etamaster 125mm-150mm Single Speed Fan
The Ruck® ETAMASTER inline tube fan (EM E series) can be operated with an on/off switch. The Etamaster inline tube fan from Ruck® can be mounted directly on a tube, but we recommend the corresponding Ruck® fast clamp to reduce vibrations and noise through the duct.
The Etamaster has a built-in thermal switch to prevent burn out. In addition, the inline tube fan is equipped with a Mixed-Flow impeller with stator, as a result of which the fan will still produce a low sound level at a high flow rate. The EM M series is available with capacities ranging from 124 m3/h to a maximum of 3180 m3/h and with diameters ranging from 100 mm to a maximum of 315 mm respectively.
Ruck ventilatoren GmbH, is a leading German company with more than 25 years of experience. They are market leaders in the field of inline tube fans. With more than 300 enthusiastic employees, they work together on new developments and techniques on a daily basis. The company ensures quality assurance in order to deliver a great product with the latest ERP (Energy Related Product) requirements.
Technical Specs:
- With plastic housing
- Built-in thermal switch
- Mixed-Flow impeller with stator
- Single speed
- Size adapters 125mm and 150 available (100mm on request)
For more information visit here.
|
Max. Air Volume | 270 m³/h |
|
Connection diameter | 150 mm |
|
Nominal frequency | 50 Hz |
|
Nominal voltage | 230 V |
|
Nominal power consumption | 29 W |
|
Max. Operating Current | 0.29 A |
