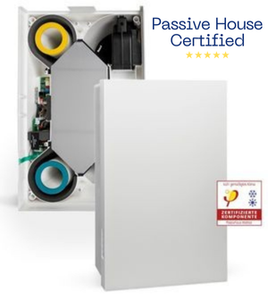

Meltem M-WRG-ii P-T FC - Humidity and CO2
PASSIVE HOUSE CERTIFIED
Decentralised ventilation unit including
time-limited intensive ventilation, operation at the unit – optionally
by wireless remote control, with automatic mode (humidity and
CO2 control), cross-counterflow heat exchanger,
material: ABS, colour: white, similar to RAL 9010
Energy efficiency class: A
Please note: flush-mount installation requires an M-WRG-II
flush-mount installation kit.
Unit Offers:
- Extract air operation
- Supply air operation
- Variable extract air operation
- Variable supply air operation
- Variable humidity control (RH)
- Variable C02 control
- Variable automatic mode RH + CO2
- Variable temporary intensive ventilation
- Variable timer program
- Control input
- Optional unit OFF input
- Minimum ventilation program to DIN 18017-3, factory setting, CANNOT BE SWITCHED OFF, optional
- Ventilation for moisture protection with humidity control, CANNOT BE SWITCHED OFF, optional
- VOC sensor for monitoring the outdoor air quality, not in combination with minimum ventilation²
- Visual filter change indicator
- Reading the operating hours
- Sensor values display
- VOC supply air > CO2 extract air display
- RH supply air > RH extract air display
- Visual fault indicator LED / symbol
- Operating status
- Frost protection function
Technical Data:
- Up to 94 % heat recovery efficiency
- Cross-counter flow heat exchanger
- Enthalpy heat exchanger with moisture recovery possible
- Constant volume flow rate (suitable for multi-story buildings)
- Inherent noise from LpA, 10 m² = 8.4 dB(A)
- Sound insulation D new up to 70 dB
- Filter class ISO ePM1 60% (F7) as standard
- Pollutants in the outdoor air can be detected by optional VOC sensor
- High air flow 10 - 100 m3/h
- Single or multi-room solution
- Passivhaus (PHI)-certied
- Tested to VDI 6022 sheet 1 hygiene standards
